Tsunami Motors

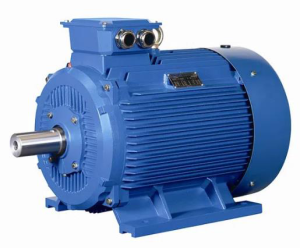

IE2 HIGH EFFICIENCY MOTOR
Heavy Duty industrial motors with a large selection of operational features.
Cast iron totally enclosed fan cooled (TEFC)
Output Power 0.55 630kW
IE 2 High Efficiency
Three Phase 400V / 525V / 690V / 1000V 50Hz & 60Hz
2, 4, 6 & 8 pole (10, 12 & 2 speed on request)
Frame 80 – 500
All standard arrangements
IP65 (increased IP ratings available) IP66
F class insulation, B class temperature rise
(H class insulation available on request)
IEC600034
Heavy & General Industrial / Agriculture / Mining

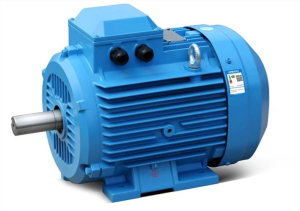

IE3 PREMIUM EFFICIENCE MOTORS
Cast iron totally enclosed fan cooled (TEFC)
Heavy industrial / premium efficiency /
high specification mining applications
3 Phase 400V / 525V / 690V / 1000V
50Hz & 60Hz
2, 4, 6 & 8 pole (10, 12 & 2 speed on request)
80-450
All standard arrangements
0.55 – 1000kW
IP66
H class insulation, B class temperature rise
IE3
IEC600034-2-1

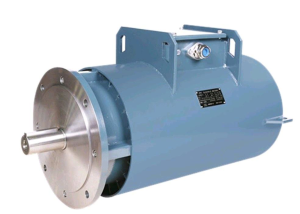

IE2 HIGH EFFICIENCY STEEL FRAME MOTORS
Construction: Heavy Duty Fabricated Steel Construction, Totally
Enclosed Fan Cooled
Application: Heavy Mining Applications Pumps
Output power: 7,5 kW 4P, 1 5kW 4 P, 22KW 2 P & 37 kW 2 P
Power Supply: Three phase: 525V 50Hz
Speed: 2 & 4 Pole
Frame sizes: Market Standard
Mounting: All standard arrangements
IP rating IP55
Winding F class insulation, B class temperature rise
Efficiency: IE2 High Efficiency
Compliance: IEC600034
Oversized bearings
Lamination steel, high quality silicon steel
All motors are fully vacuum pressure impregnated (VPI)..
Fully wedged stators throughout entire range.
Rotor Die Cast Aluminium
1 year warranty

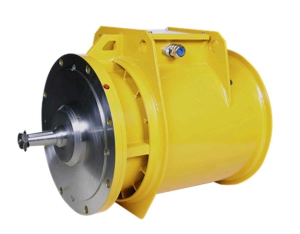

SCRAPER WINCH MOTORS
Construction: Heavy Duty Fabricated Steel Construction, Totally
Enclosed Fan Cooled
Application: Heavy
Duty Mining Winches
Output power: 37kW 4P, 55kW 6P, & 75kW 6P
Power Supply: Three phase: 525V / 1000V 50Hz
Speed: 4 / 6 Pole
dependent on KW rating
Frame sizes: Market Standard
Mounting: All standard arrangements
IP rating IP55 (increased IP ratings available IP65 or IP56)
Winding F class insulation, B class temperature rise
Efficiency: IE1 Standard
Compliance: IEC600034
Lamination steel, high quality silicon steel is used on all motors (280 C).
All motors are fully vacuum pressure impregnated (VPI)..
Fully wedged stators throughout entire range.
Available Die Cast Aluminium Rotor Bars
1 year warranty
